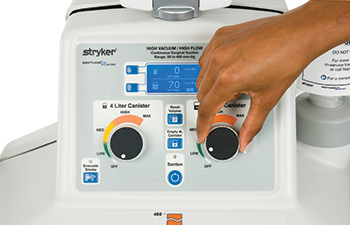

Improved Suction Controls

• Added LOW, MED, HIGH range color coding (using scale, labels and colors found on wall regulators)
• Enhanced user control in LOW (50-75 mm-Hg) and MED (80-115 mm-Hg) ranges by rescaling the knobs to allow adjustment at 5 mm-Hg increments

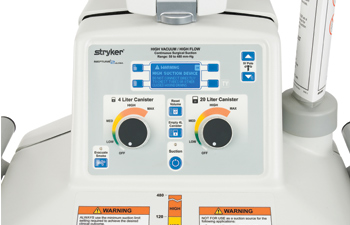

Enhanced Suction Display & Functionality

• Reduced maximum suction setting from 530 to 480 mm-Hg
• Added LOW, MED, HIGH range indicator to screen
• Vacuum units of measure are displayed in mm-Hg only

Added Interactive Alerts

• Added warning against use with chest tubes and wound drains, which displays on each power up
• User must read warning and press “OK” before suction can be activated
• Added audible and visual signals when HIGH (120-480 mm-Hg) suction is selected or activated
• Display screen colors change from blue to white when HIGH range is selected
